UK MARKET PORTABLE RCD

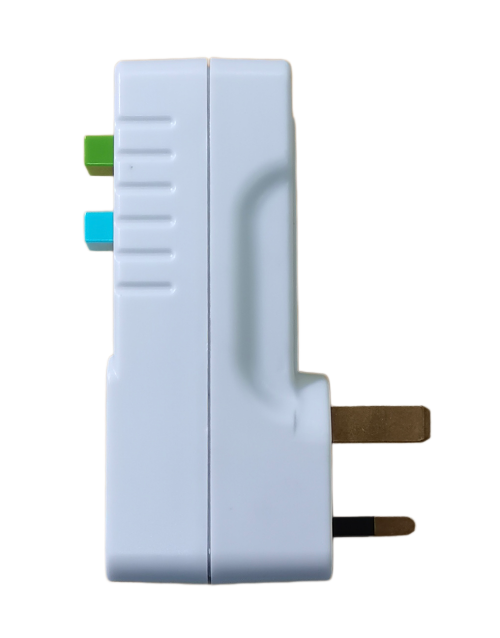

British Standard RCD01B Adaptor
Instant Earth-Fault Protection for High-Risk Power Tools

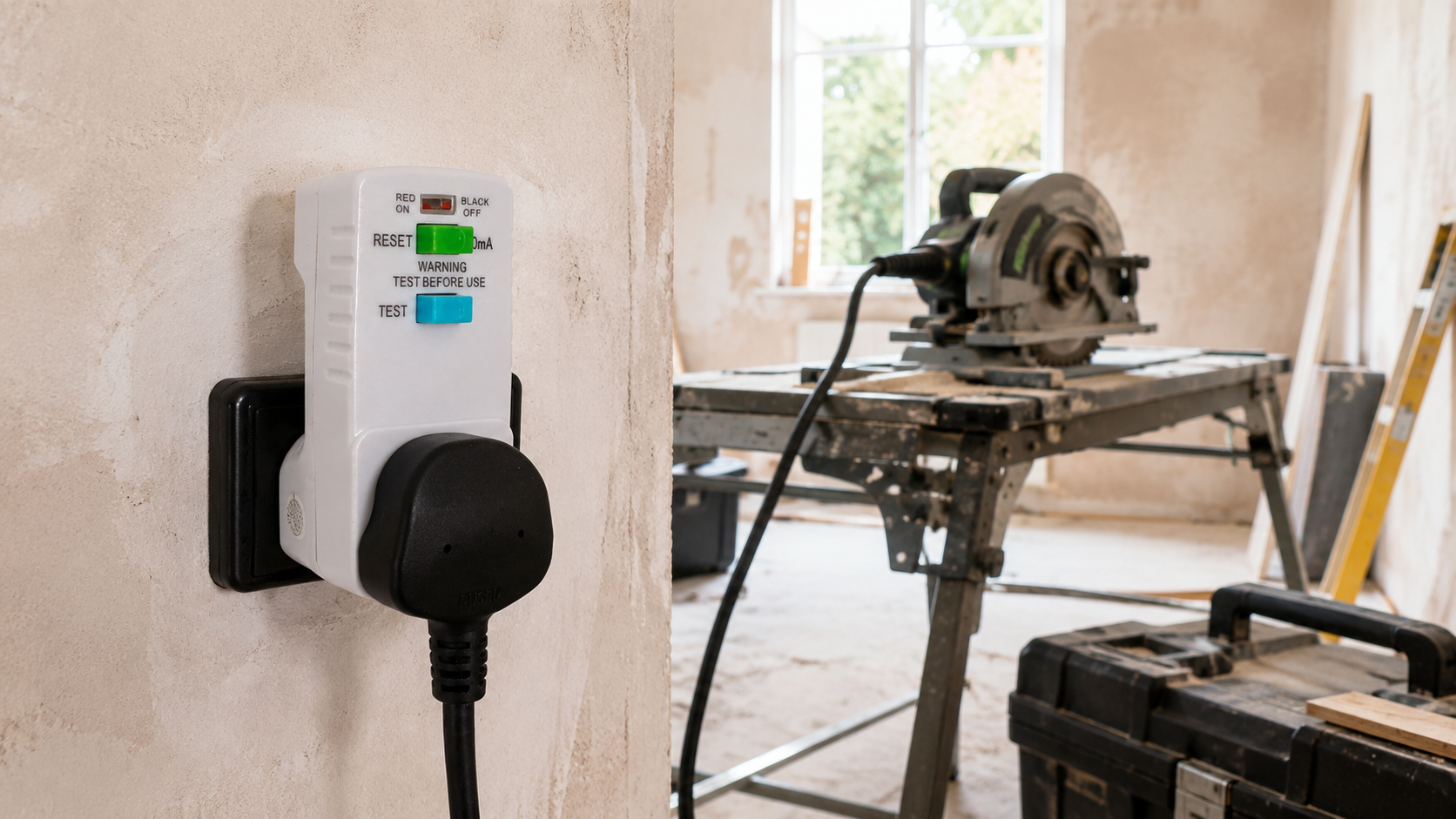

- Active (Non-Latching) Safety: The RCD trips out automatically on the loss of power. This critical feature prevents hazardous power tools from unexpectedly restarting when the mains supply is restored.

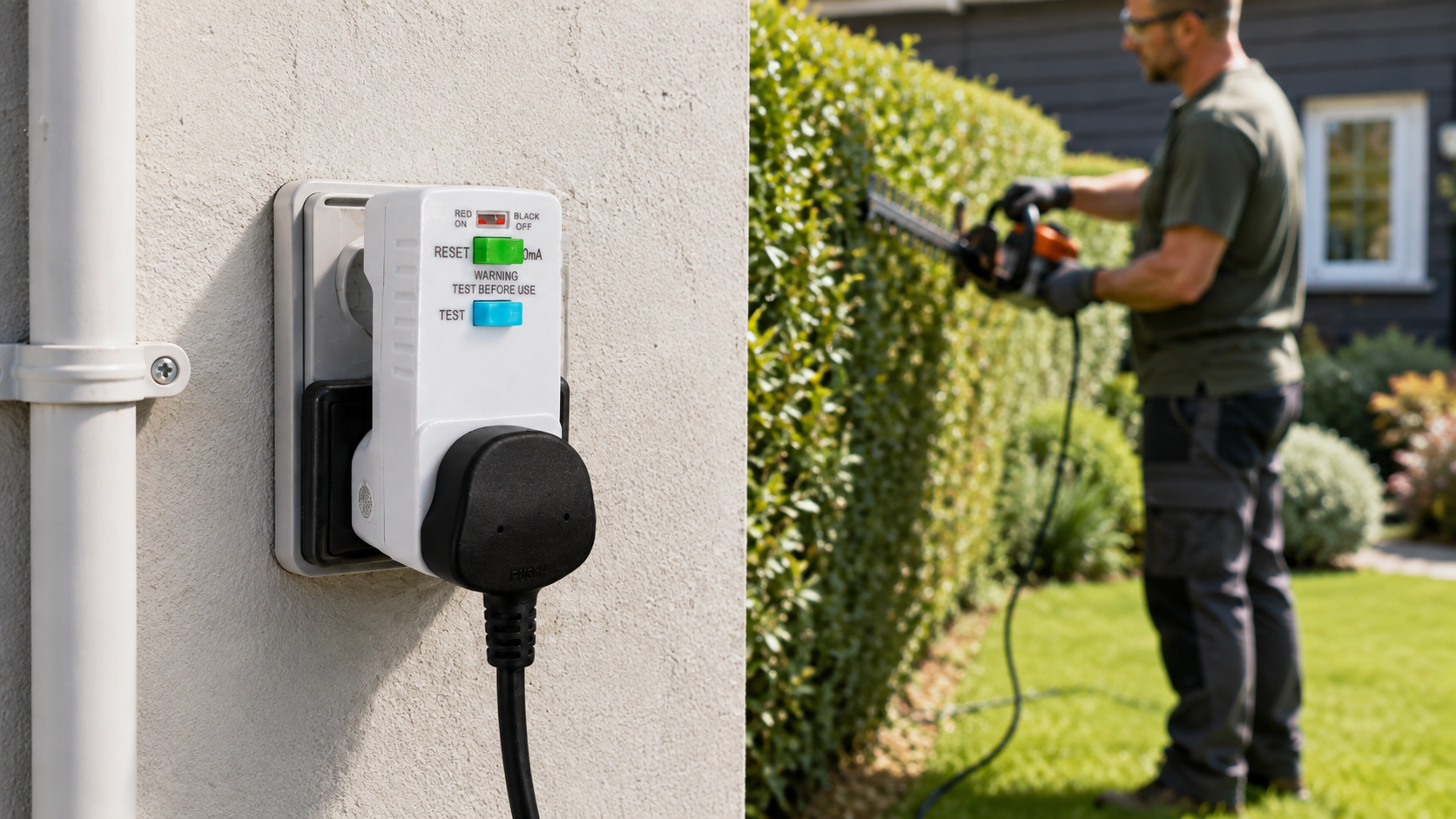

- Garden Maintenance Tools: Provides essential earth-fault protection when powering lawnmowers, hedge trimmers, and pressure washers from indoor sockets.
- Home Appliances: Suitable for use with most portable electrical tools and appliances providing earth-fault protection from the socket outlet.

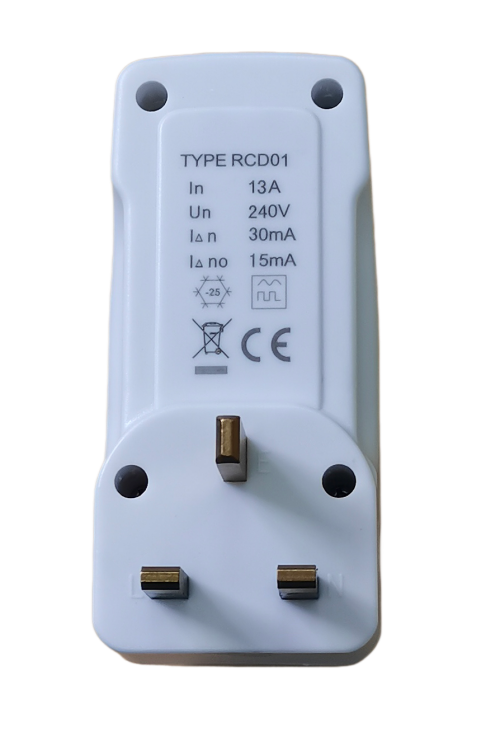

Technical Specifications
| SPECIFICATION | VALUE |
|---|---|
| Model | RCD01B |
| Rated Voltage | 230V AC ~ 50Hz |
| Rated Current | 13A |
| Rated Residual Operating Current | 30mA |
| Max Tripping Time | ≤ 30 ms |
| Operation Temperature | -25°C ~ +40°C |
| Protection Class | IP44 |
| Colour | White |
| Tested according to | BS7371 & BS1362 |
Essential Safety for High-Risk Equipment

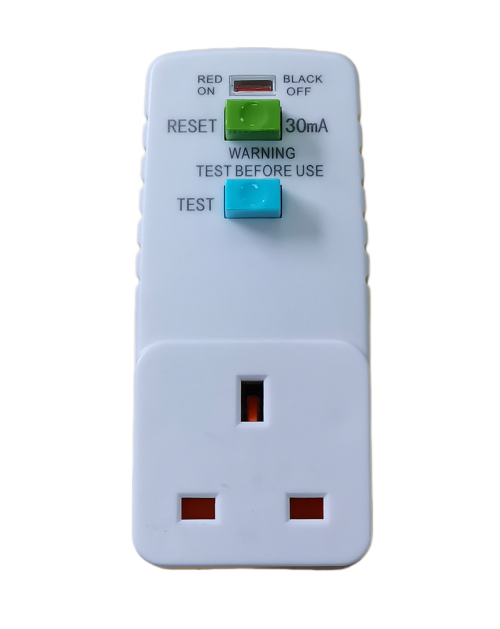

High-Cycle Test & Reset
Routine safety checks are made effortless. The unit features a high-visibility, tactile silicone rubber button against tear, engineered for thousands of operational cycles without degradation.
Flame Retardant Housing
Manufactured with an industrial-grade flame retardant shell, ensuring thermal stability and structural safety during continuous 13A heavy-duty loads.
Extreme Environment Resilience
Engineered to perform reliably in demanding environments, functioning perfectly in ambient temperatures ranging from -25 to 40°C, featuring AC/DC impulse current sensitive technology
